The SuperMini is a versatile, ultra compact, highly efficient light. It can be utilized as a general purpose light, an auxiliary light, or as the primary light for smaller vehicles. It features small dimensions and low power consumption, while still having high output. Its size allows it to be placed on virtually any vehicle (Auto, Tractor, ATV, Motorcycle, etc.). The light can be ordered in three variations, WORK (wider work beam), MID (mid beam), FOG (yellow fog light). There are also special versions like invisible infrared versions which can be special ordered.

Superminis are in use in hundreds of pieces on the rallys (eg. Dakar Rally), off road voyages in Africa, Asia and Europe, or even on baloons.

Construction:

  • 20 Watt power and ca. 2000 lumen light output
  • High strength aluminum, all CNC- precision milled housing (EU made)
  • Extreme environmental protection (IP69K Compliance)
  • best available LED diodes (latest US technology)
  • Ruggedized high efficiency electronics (like above)
  • Thermal, reverse polarity and overvoltage protection
  • Built and tested in Europe with parts primarily sourced from European and American suppliers.



Versions:

  • Supermini MID Middle wide beam, 25° coverage. Range ~330 ft (100m).
  • Supermini WORK Wide beam, 65° horizontal and 35° vertical coverage. Range ~165 ft (50m).



Videos:

2x Supermini MID + Honda Transalp 650
2x Supermini MID + Honda CRF1000 Africa Twin



Links:

Photo Gallery



Technical data:

  • Power consumption: ~20 Watt
  • Supply voltage: 11-30V DC
  • Light output: ca. 2000lm
  • Weight: 0.12kg
  • Dimensions, housing: 45x40mm
  • Power connection: Superseal male connector (a female connector with 1m wires is included)

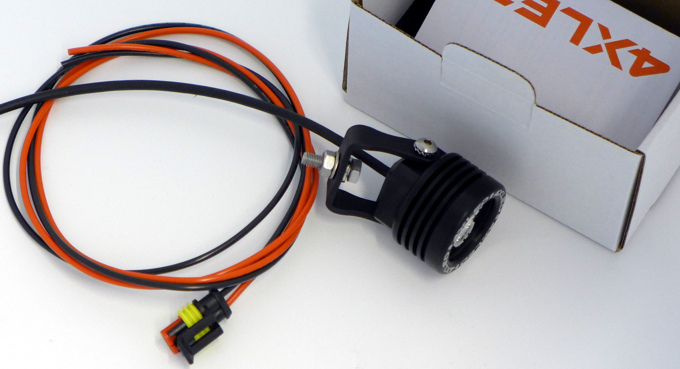

In the delivery included:

  • The light with bracket and mounting screw M6
  • 1m wires with light plug
  • Instruction

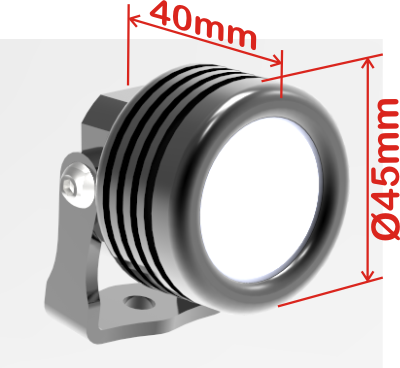

Dimensions:
